Terminal blocks
303R
PCB and equipment connections in a range of terminal block formats.
Product information
- Supplier model
- TIELEE TL104R
- Product type
- Rising-clamp PCB terminal block
- Pitch (mm)
- 3.81mm
- Number of levels
- Single level
Materials
- Insulating material
- PA66 UL94 V-0
- Insulating material group
- Ⅰ
Technical specifications
- Solid conductor (AWG)
- 26~16
- Stranded conductor (AWG)
- 26~16
- Solid conductor (mm²)
- 0.2~1.5
- Stranded conductor (mm²)
- 0.2~1.5
- Stranded conductor with uninsulated ferrule (mm²)
- 0.25~0.75
- Stranded conductor with insulated ferrule (mm²)
- 0.25~0.75
- Screw / tightening torque (N·m)
- M2 , 0.2Nm
- Stripping length (mm)
- 5.7mm
UL ratings
- Rated voltage — UL/CUL group B (V)
- 300V
- Rated current — UL/CUL group B (A)
- 10A
- Rated voltage — UL/CUL group D (V)
- 300V
- Rated current — UL/CUL group D (A)
- 10A
- Wire range (AWG)
- 26~16AWG
IEC ratings
- Rated impulse voltage
- 2.5KV
- Rated voltage — II/2 (V)
- --
- Rated voltage — III/2 (V)
- 160V
- Rated voltage — III/3 (V)
- --
- Rated current — III/3 (A)
- --
- Rated current — III/2 (A)
- 10A
- Rated current — II/2 (A)
- --
- Wire range (mm²)
- 0.2~1.5mm²
Environmental specifications
- Operating temperature (°C)
- -40°C up to +105°C
- Storage temperature (°C)
- -40°C up to +70°C
PRODUCT INFORMATION
Product details

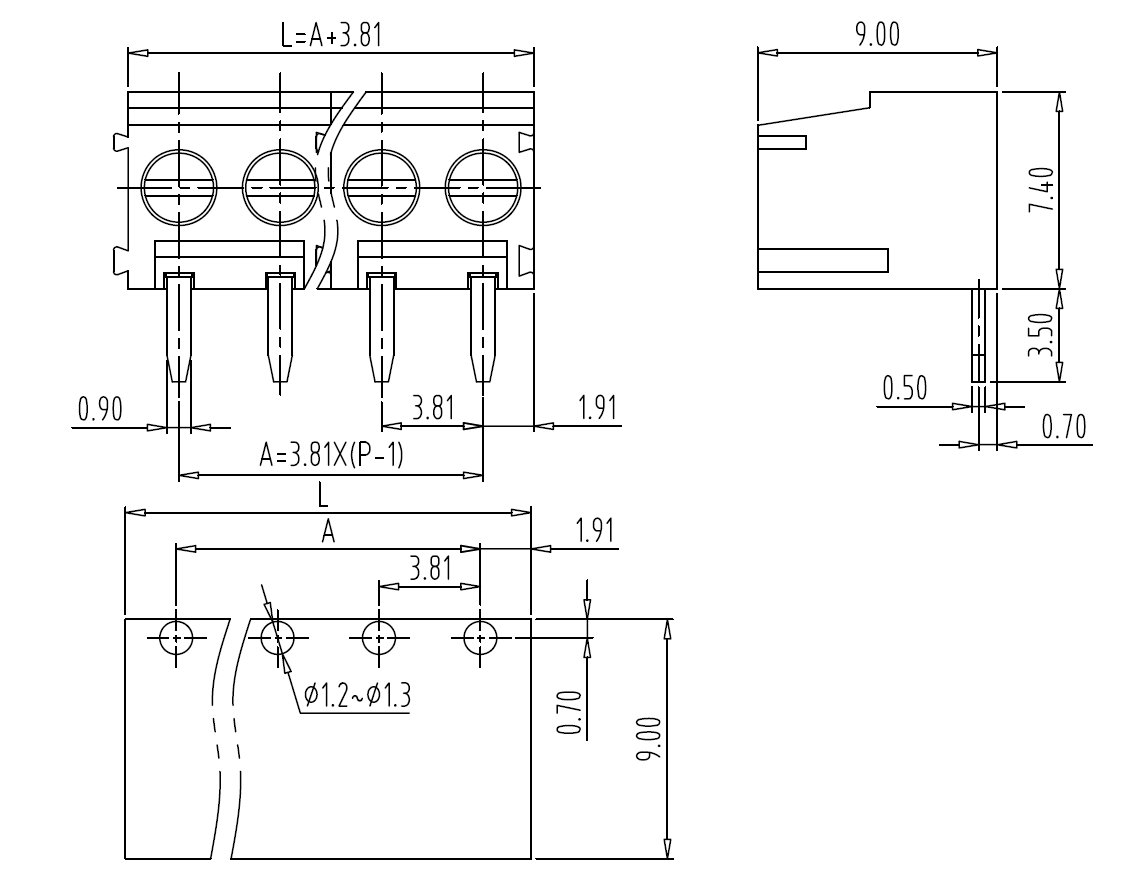

Technical information & product images 1
